PVC Plastic pipe making machine

Short Description:

PVC pipe line is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.


Product Detail

Product Tags

PVC pipe line is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
>>The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.  >>And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
pvc pipe machine
Process Flow: Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→  Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
Ethiopian Market pvc pipe machine

Details Images
Conical twin screw extruder

electric pvc pipes machine

conical twin screw extruder

PVC Plastic pipe making machine

>>High specific output for gentle plastification of PVC material
>>High melt homogenity even with high-filled material formulations
>>Optimized material feeding system for stable production of PVC-U powder
>>Bimetallic material screw and barrel ensuring long time working without trouble
>>Suitable for PVC-U high-filled pipe production
>>Output range from 150kg/h-900kg/h
>>Touch screen control panel
>>AC servo motor drive by inverter
>>Vertical integrated structured gear box
>>Equipped with degassing zone

pvc pipe extruder

PVC pipe die head
>>Suitable for PVC-U and CPVC pipe production
>>Diameter range from Ø16 to Ø1000 mm
>>High melt homogenity
>>Low pressure built up even with high outputs
>>Melt channel distribution system
>>Equipped with seramic heaters
>>Pipe head carriage for easy movement
>>Pipe heads are designed according to application requirements.
>>Easy maintenance thanks to the optimized and proven designed construction

pvc pipe die head

pipe  mould spare part

PVC Plastic pipe making machine1

Vacuum cooling tank
>>Suitable for PVC pipe production
>>Diameter range from Ø16 to Ø1000 mm
>>Length up to 12000mm
>>304 stainless steel with painted outer surface
>>Special water sprays are located on the best position for cooling the pipe efficiently
>>Special and easy adjusted pipe supports for each pipe diameter
>>Installed vacuum and water pumps can work without any maintenance for long times
>>Special cooling baths can be designed for specific extrusion production

Vacuum cooling tank

pipe vacuum cooling tank

Haul off
>>Pipe range from Ø16 to Ø1000 mm
>>High pulling force without lose the shape of the pipes
>>Equipped with 2, 3, 4, 6, 8 or 10 caterpillars according to the application
>>Motorized positioning of the lower caterpillars
>>Simple operation
>>Completely closed protection for maximum safety
>>Chain conveyors with special rubber pads on chains which do no mark on the pipe.
>>Synchronization with the extruder screw speed allows stable production during changing the production speed

pipe hauling off

PVC Plastic pipe making machine  (1)

PVC Plastic pipe making machine  (2)

Planetary cutter

Planetary cutter
>>Automatic synchronisation with extrusion speed
>>Planetary equipped with disk and milling cutter for cut and chamfering
>>Touch screen control panel
>>User friendly software developed by Cuishi
>>All movements are motorised and controlled by control panel
>>Pipe blocking vices device
>>Type of the cutting unit is chose depend on pipe
>>Less maintenance needs
>>Completely closed and secured machine for maximum safety

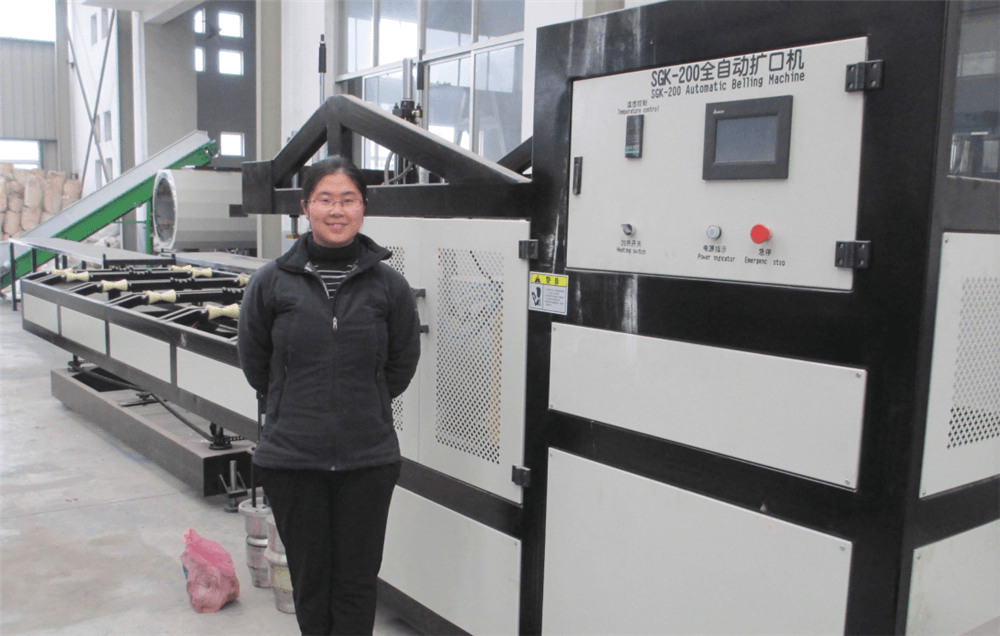

Belling machine
>>Suitable for PVC pipe production
>>Universal automatic belling machines for 4 different socketing types
>>Diameter range from Ø20 mm to Ø1000 mm
>>Socket forming: smooth (solvent cemented)
>>Socket forming: shaped for insertion of rubber gasket (blowing system)
>>Socket forming: collapsible system
>>Socket forming: auto-load rubber gasket
>>Touch screen control panel
>>User friendly software developed
>>Automatic synchronisation with extrusion speed
>>Pneumatic, hydraulic and motorized movements
>>High quality belling tools

pvc pipe belling machine

Belling machine (1)

Belling machine (2)

pvc threading machine
Product Paramenters

Diameter ranges(mm) Extruder model Max. Capacity(kg/h) Max. lineal speed(m/min) Extruder motor power(kw)
16-32 (4-cavities) SJSZ65/132 300 10*4 37
20-63 (Dual) SJSZ65/132 300 15*2 37
50-160 SJSZ65/132 300 8 37
75-250 SJSZ80/156 500 6 55
110-315 SJSZ80/156 500 4 55
75-160 (Dual)

SJSZ92/188

850 6 110
315-630 SJSZ92/188 850 1.2 110

Technical Parameter of Main extruder

Technical Parameter of Main extruder
Model Power
(kw)
Screw Diameter (mm) Screw Qty. Designed Output (kg/h) Dimension(L*W*H)
(mm)
SJSZ-45/90 15 Φ45/90 2 70 3360x1290x2127
SJSZ-51/105 18.5 Φ51/105 2 100 3360x1290x2127
SJSZ-55/110 22 Φ55/110 2 150 3620x1050x2157
SJSZ-65/132 37 Φ65/132 2 300 3715x1520x2450
SJSZ-80/156 55 Φ80/156 2 400 4750x1550x2460
SJSZ-92/188 110 Φ92/188 2 750 6725x1550x2814

pipe making machine  (1)

pipe making machine  (2)

pipe making machine  (3)

PVC Plastic pipe making machine (1)

PVC Plastic pipe making machine (2)

PVC Plastic pipe making machine (3)
