Electricity Conduit Tube machine and electricity pipe machine
Qingdao cuishi plastic machinery started to make the Electricity Conduit Tube machine and PE sprial pipe machine since 1999 ,we have more than 3000 users in china and whole world
The following is the whole line including the single screw extruder for pp pe and die head and calibration table and hauling off and cutter and pipe winder machine
Install a cutting machine between the tractor and the forming machine to cut and produce online
price of plastic extrusion machine is about 20000-30000usd depends on the customer output need and request
The output customer must provide: 1) thread height, pitch, corrugation shape, 2) melted fat of PE raw material, 3) cooling water temperature for normal 24-hour production

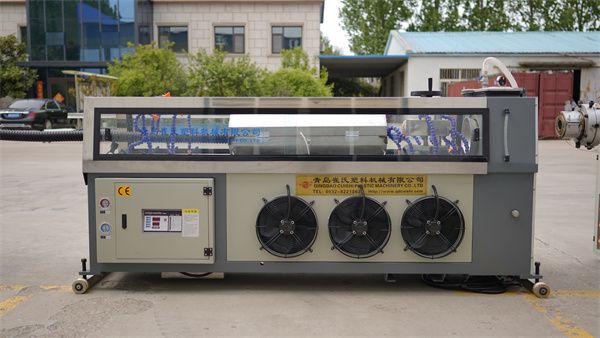

Our vacuum calibration table adopt the chiller system inside and can control the water temperate very well and cooling faster and improve the speed
| HDPE Corrugated Conduit Specfication | |||||
| ID | OD | Thickness | Pitch | Roll (m) | Pilot Wire Diameter |
|
30 |
40 |
1.4 |
10 |
300 |
1.9 |
|
50 |
65 |
1.4 |
17 |
200 |
1.9 |
|
80 |
102 |
1.9 |
25 |
100 |
1.9 |
|
100 |
130 |
2 |
32 |
100 |
1.9 |
|
125 |
160 |
2.2 |
39 |
100 |
1.9 |
|
150 |
188 |
2.5 |
47 |
50 |
1.9 |
|
200 |
253 |
3 |
55 |
50 |
1.9 |
